Description

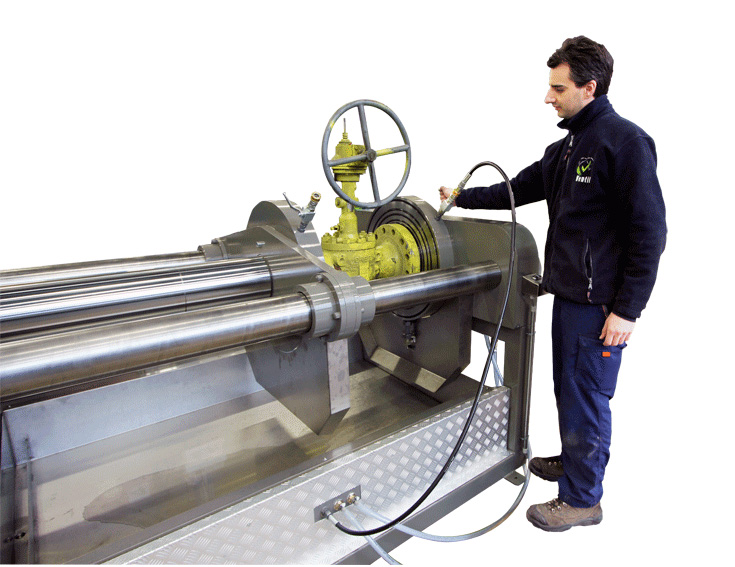

The Horizontal operating test unit ‘HC’ is completed with a heavy constructed clamping system for quick and easy positioning and clamping of all common Shut-off valves in horizontal position (valve stem vertical). The universal and versatile VCB is very well designed and equipped for the use in the valve repair shop or for smaller series testing. The standard HC is completed with sealing adapters for DIN/ANSI RF flanges, but is also prepared for the use of ‘inner seal’ adapters for valves with But- / Socket weld ends.
* The range and mentioned dimensions can be adapted to the specific application. Smaller, bigger or special applications are available on request.
Optional features:
- CR – Windows operated Computer Registrations System
- Vacuum – quick filling system, electronic controlled
- AVPS – Test- and operation systems for actuators
- Digital seat leakage measuring systems for gas and liquid
- Torque test and measuring system 0 – 500,000 Nm
- Valve support trolley, mechanical or hydraulic operated
- Fully surrounding safety closure
- HCA columns in 20° angle
